Solar Air Conditioners

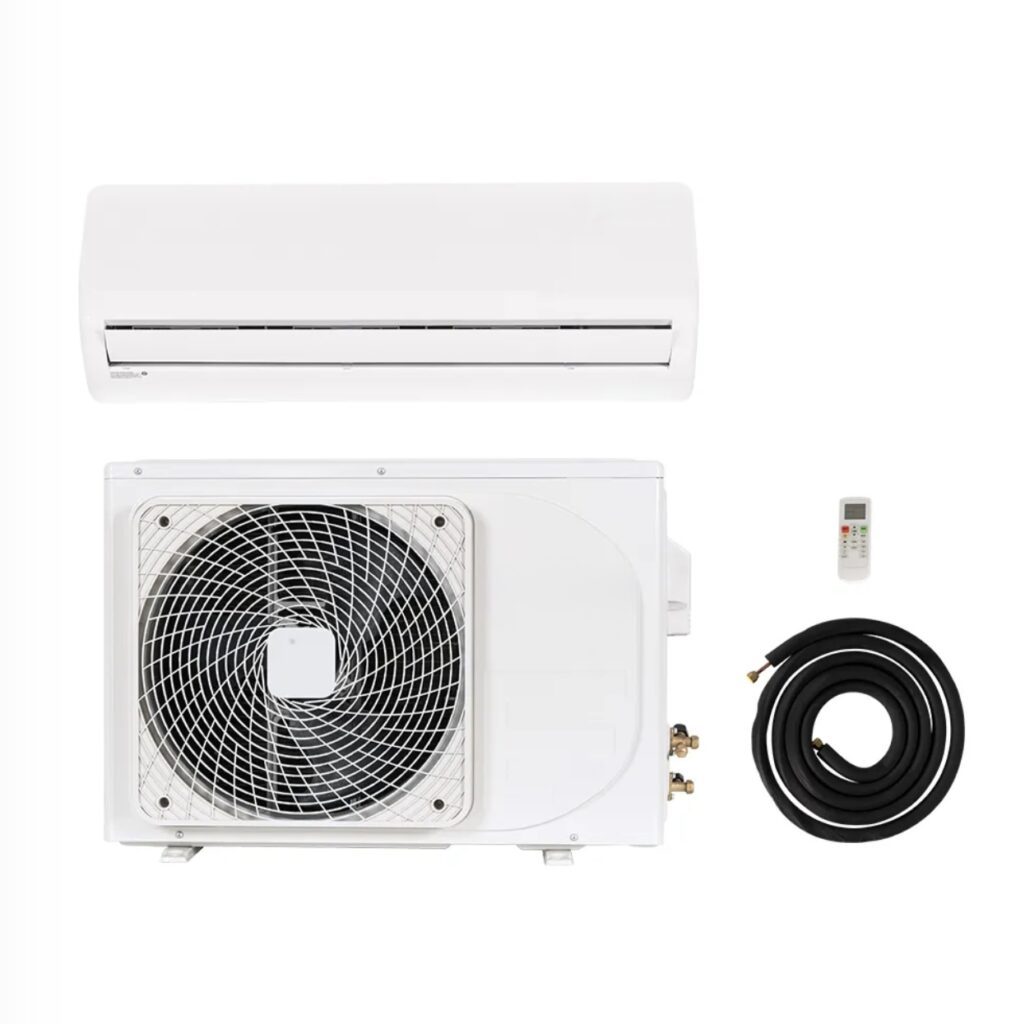

24000 Btu Hybrid Solar AC Conditioner With Solar Panel Cell Room Air Conditioner Solar Air Conditioner Price
Product Description
| Model | FD-ON/72GW |
|---|---|
| Capacity | 24000Btu |
| Power Supply | |
| AC Power (Ph-V-Hz) | 1Ph 208V-240V/50-60HZ |
| DC Power (PV in Series) (V) | 80-380V |
| DC Power Current (A) | ＜/=12A |
| Rated Cooling | |
| Capacity (W) | 6450(1800-7900) |
| Power input (W) | 1790(300-3200) |
| Rated Heating | |
| Capacity (W) | 7800(1800-9100) |
| Power input (W) | 2290(300-3500) |
| T1 EER (W/W)/(BTU/W) | 3.60/12.30 |
| COP (W/W)/(BTU/W) | 3.40/11.60 |
| Dehumidification capacity (L/h) | 2.5 |
| Compressor | |
| Type | 2xRotary Inverter |
| Brand | Panasonic |
| Indoor noise level (Turbo)(dB(A)) | 50 |
| Indoor unit | |
| Dimension(W×H×D)(mm) | 1080×330×237 |
| Packing(W×H×D)(mm) | 1140×300×382 |
| Net weight/Gross weight(kg) | 15.0/18.5 |
| Outdoor noise level (dB(A)) | 58 |
| Outdoor unit | |
| Dimension(W×H×D)(mm) | 900×700×337 |
| Packing(W×H×D)(mm) | 1006×755×418 |
| Packing(W×H×D)(mm) | 50/54.5 |
| Refrigerant type | R410A |
| Max Design pressure(MPa) | 4.3/1.5 |
| Refrigerant copper pipe | |
| Gas side/Liquid side (inch) | 1/2 1/4 |
| Max.refrigerant pipe length(m) | 25 |
| Max.difference in level(m) | 10 |
| Refrigerant connection copper pipe length(m) | 4 |
| Connection wire length(m) | 5 |
| Electronic Expansion Valve | Yes |
| Loading QTY 40”Hq/20″GP(sets) | 115/50 |
| Advised Solar Panel(Pcs) | (3-8)*330W in series |

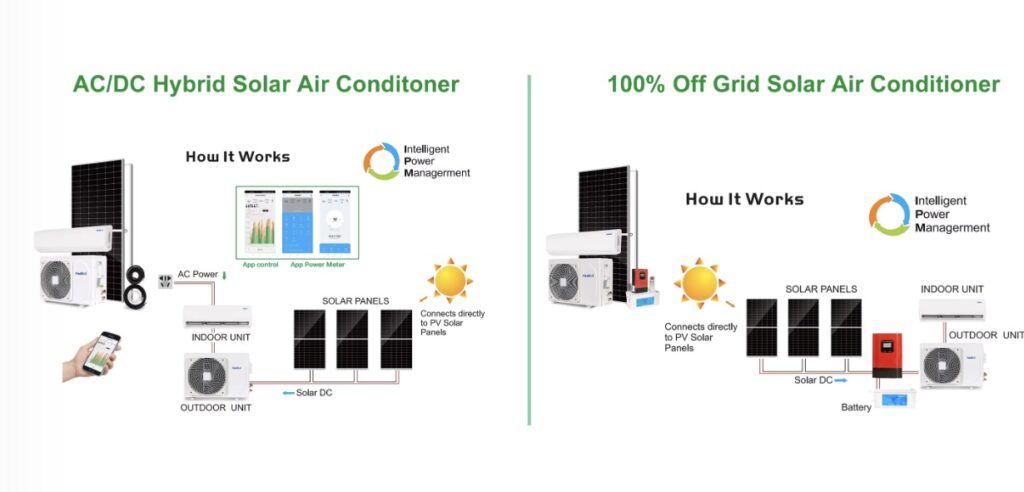

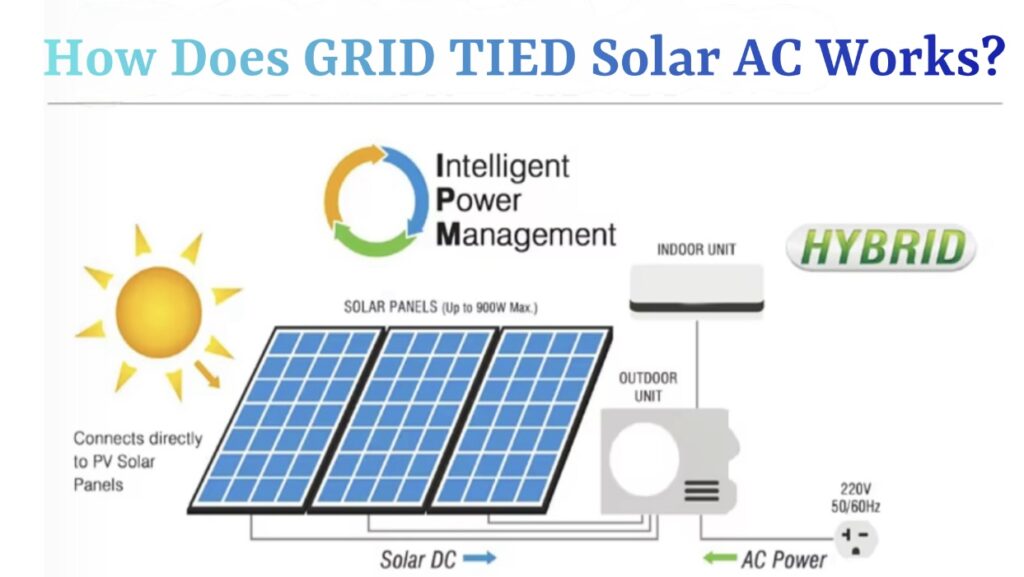

How it Works
AC/DC Hybrid Solar Air Conditioner
- 100% DC Inverter = No Wasted Energy
- 1.9,000, 12,000 18,000, 24,000 BTU Capacity
- 2.All DC = No Inverter.
- 3.48v Solar Power
- 4.Cool or Heat up to 250 ft^2
- 5.Variable Capacity
- 6.Anti-Corrosion Technology
- 7.Eco-Friendly R410a Refrigerant
- 8.Washable Filters
- 9.Digital Wireless Remote
- 10.Quiet Indoor Unit(As Low As 26dB)

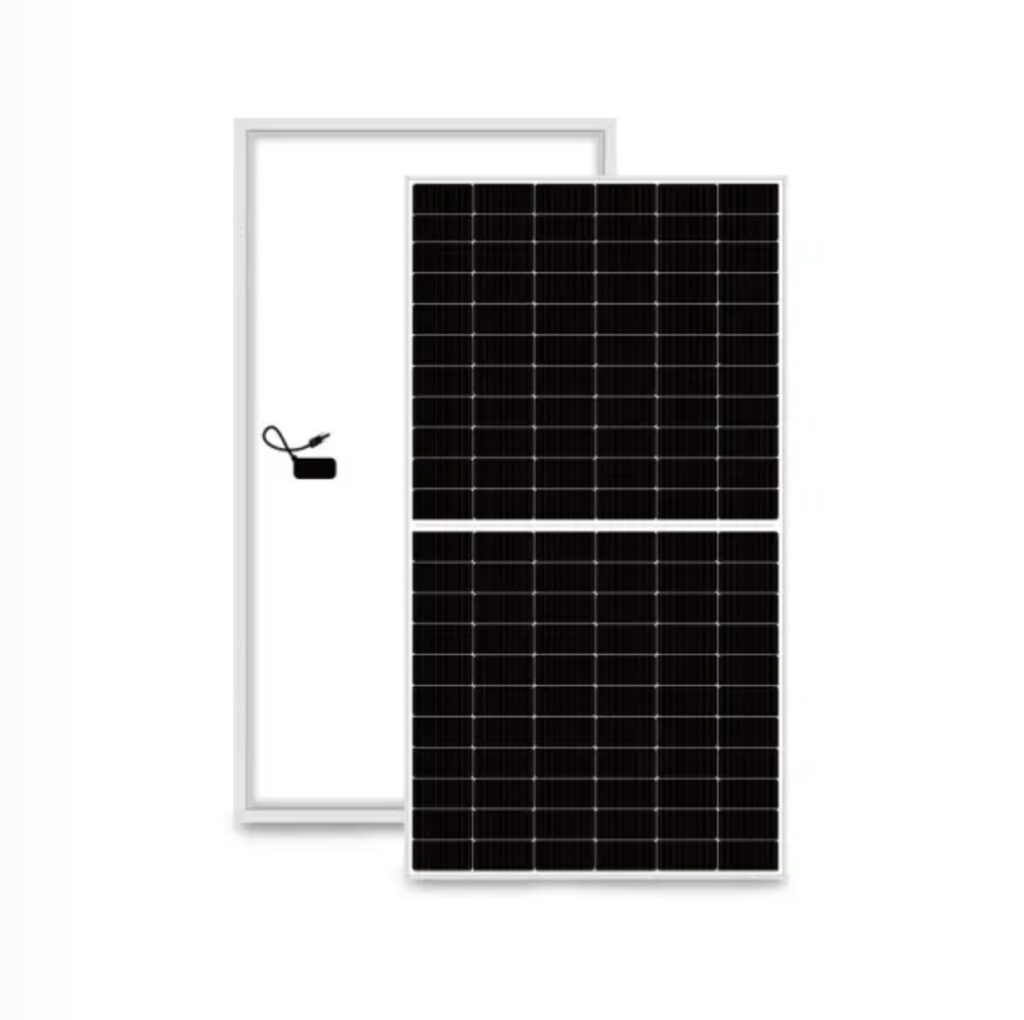

- Module Type FAD-72L9
- 1.Maximum Power (Pmax):450
- 2.Open-circuit Voltage (Voc):49.30
- 3.Maximum Power Voltage (Vmp):42.11
- 4.Short-circuit Current (lsc):11.35
- 5.Maximum Power Current (lmp):10.69
- 6.Module Efficiency (%):20.70
- 7.Weight:23.5kg
- 8.Dimension (L×WxT):2094*1038*30mm
